Mô tả
Socket: LGA1151 hỗ trợ CPU intel thế hệ 8, 9
Kích thước: Micro ATX Form Factor; 24.4cm x 24.4cm
Khe cắm RAM: 4 khe (Tối đa 64GB)
Khe cắm mở rộng: 1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot running at x4 (PCIEX4), 1 x PCI Express x1 slot, 1 x M.2 Socket
Khe cắm ổ cứng: 6 x SATA 6Gb/s connectors, 1 x M.2 connector
Tên Hãng: GIGABYTE

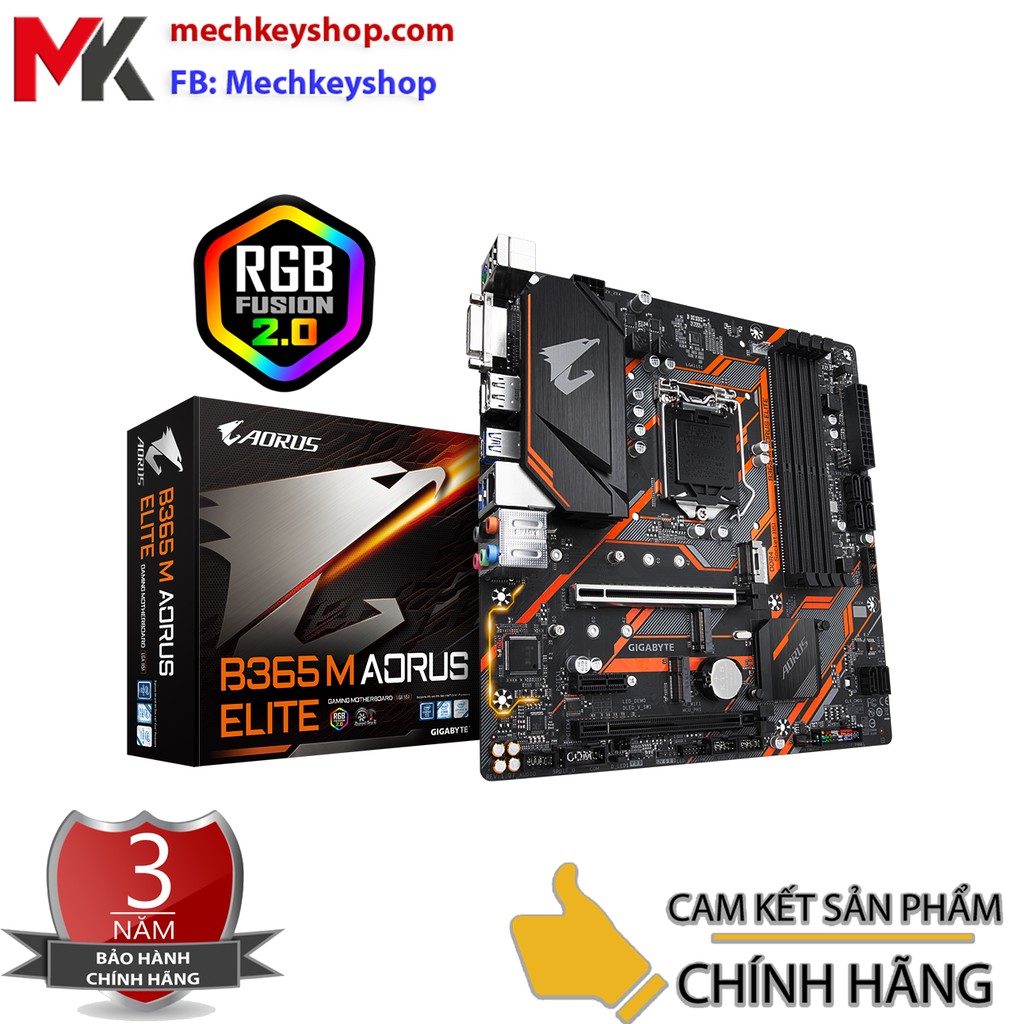

Model: B365 M AORUS ELITE
CPU hỗ trợ: Intel
Chipset: B365
RAM hỗ trợ: 4 x DDR4 memory slots, support up to 64GB
Khe cắm mở rộng:
1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot running at x4 (PCIEX4), 1 x PCI Express x1 slot, 1 x M.2 Socket
Ổ cứng hỗ trợ
6 x SATA 6Gb/s connectors, 1 x M.2 connector
Cổng kết nối (Internal)
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x addressable LED strip power select jumpers
2 x RGB LED strip headers
6 x SATA 6Gb/s connectors
2 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper

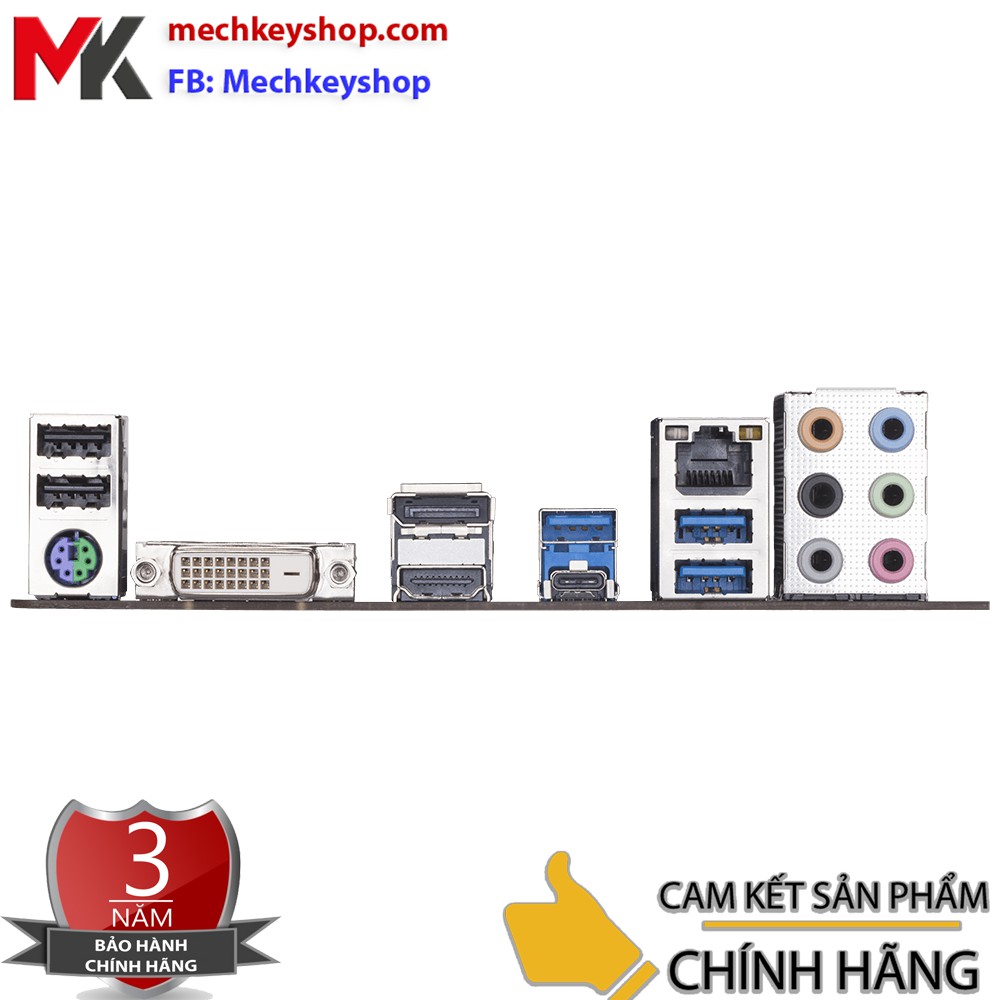

Cổng kết nối (Back Panel)
1 x PS/2 keyboard/mouse port
1 x DVI-D port
1 x DisplayPort
1 x HDMI port
1 x USB Type-C™ port, with USB 3.1 Gen 1 support
3 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
6 x audio jacks
LAN / Wireless
Intel® GbE LAN chip (10/100/1000 Mbit)
Kích cỡ
Micro ATX Form Factor; 24.4cm x 24.4cm
