Mô tả

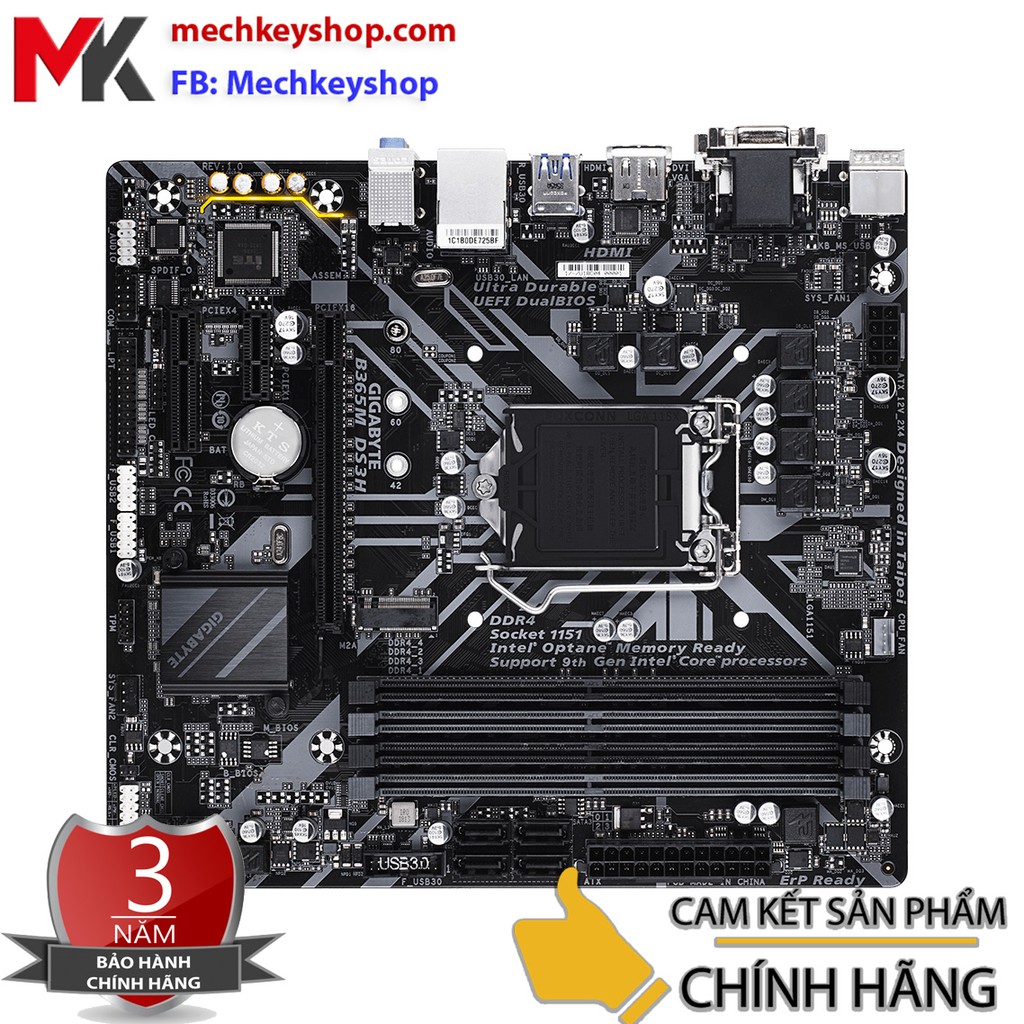

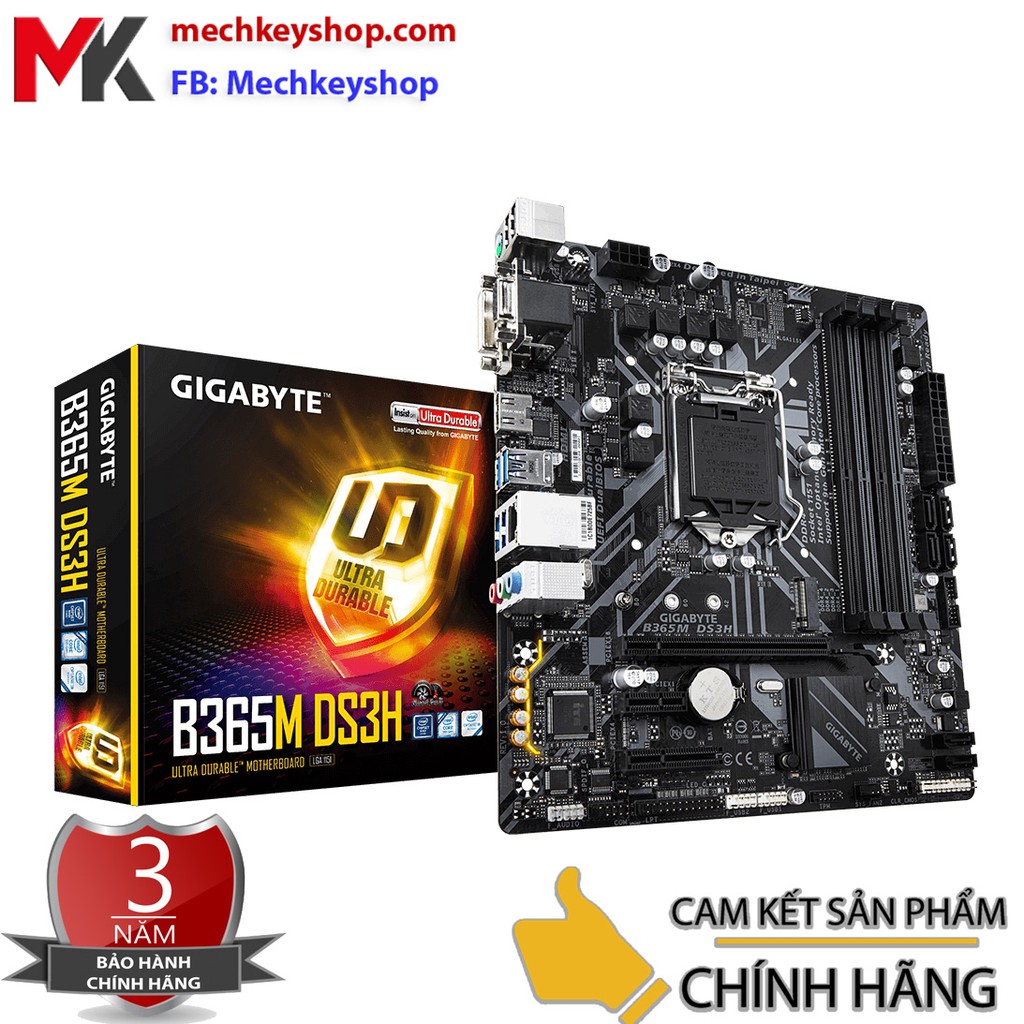

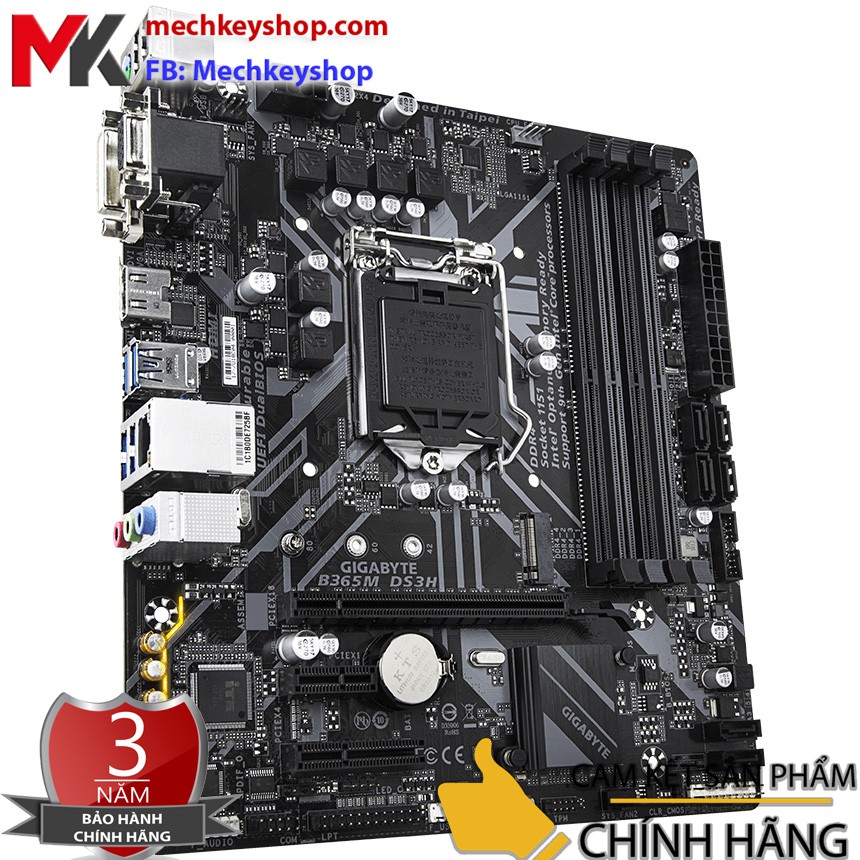

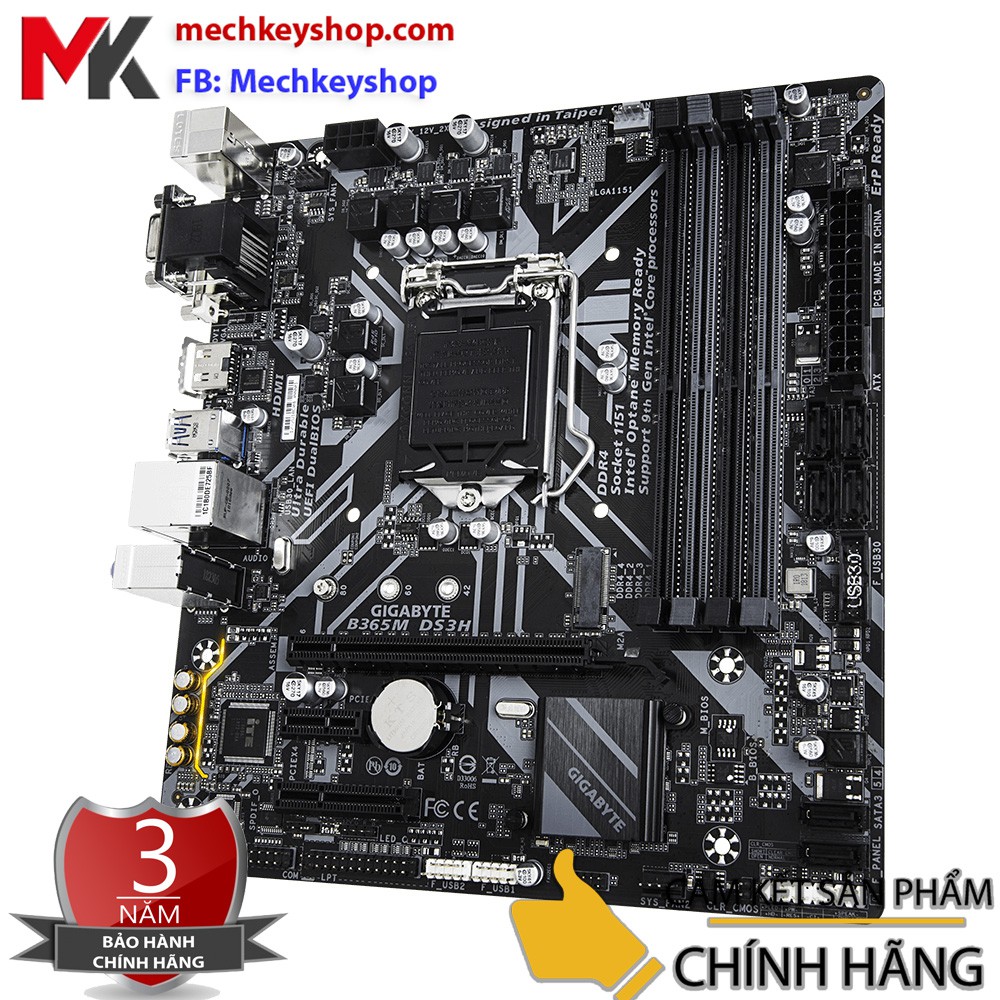

Gigabyte B365M-DS3H
Socket: LGA1151 hỗ trợ CPU intel thế hệ 9, thế hệ 7, thế hệ 5, thế hệ 3
Kích thước: m-ATX
Khe cắm RAM: 4 khe (Tối đa 64GB)
Khe cắm mở rộng: 1 x PCI Express x16 slot, 1 x PCI Express x4 slot, 1 x PCI Express x1 slot
Khe cắm ổ cứng: 1 x M.2 connector, 6 x SATA 6Gb/s
Tên Hãng: Gigabyte
Model: B365M-DS3H
CPU hỗ trợ: Intel
Chipset: B365
RAM hỗ trợ: 4 x DDR4 DIMM slots, support up to 64GB DDR4 2666/2400/2133 MHz memory modules
Khe cắm mở rộng:
1 x PCI Express x16 slot, running at x16
1 x PCI Express x4 slot
1 x PCI Express x1 slot
Ổ cứng hỗ trợ
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, RAID 5, and RAID 10
Cổng kết nối (Internal)
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x RGB LED strip header
1 x M.2 Socket 3 connector
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x parallel port header
1 x Clear CMOS jumper

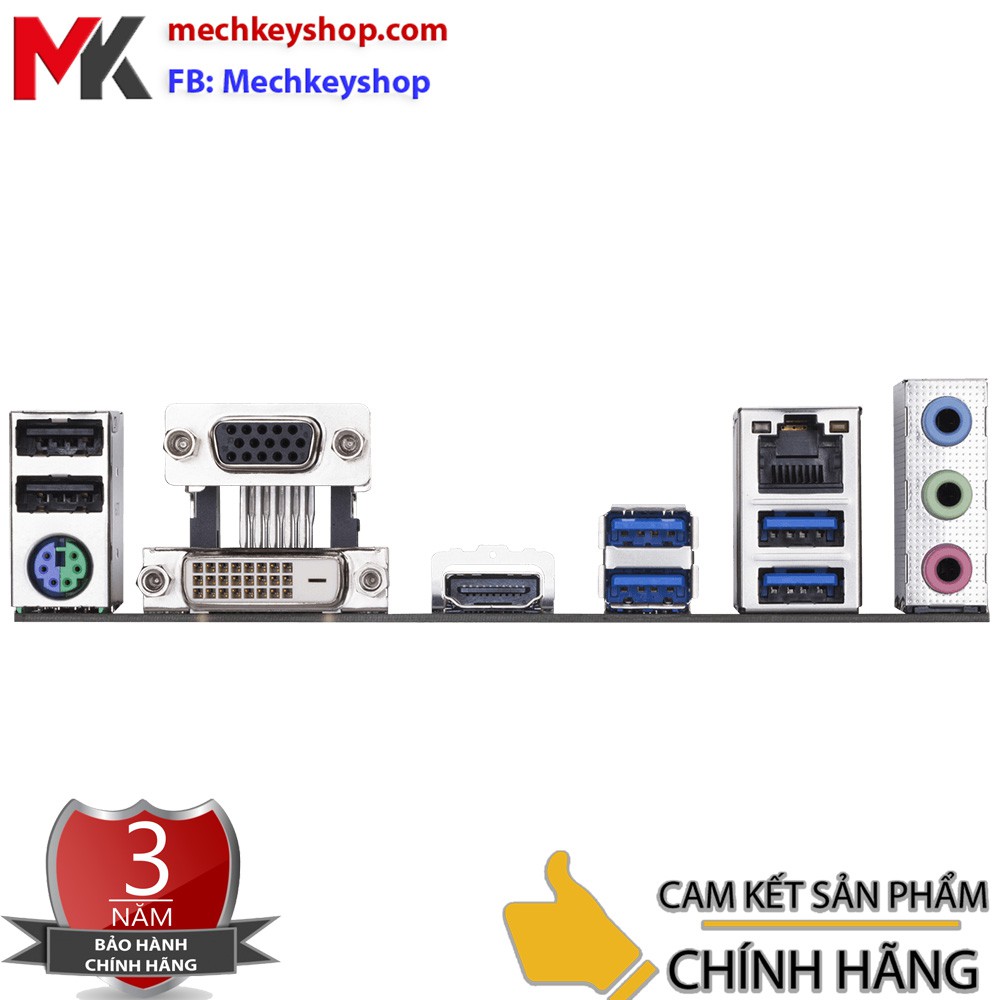

Cổng kết nối (Back Panel)
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.1 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
LAN / Wireless
Realtek® GbE LAN chip (10/100/1000 Mbit)
Kích cỡ
Micro ATX Form Factor
22.6cm x 20.5cm
